Re: ► Soft Skinned Vehicles

Post by SIS 5 » 11 Jul 2019 08:52

Hi Bert,

You are right, it is a Büssing-NAG type 500 S. To the use: You can see the license plate with the two letters "RP" = Reichspost. It was a special vehicle for the transport of parcels, a so-called "Gepäckwagen". During the war these vehicles were used by the Deutsche Feldpost (German Army Postal Service).
Here a pic of such a vehicle (source: ebay).

Best regards

Bert
You do not have the required permissions to view the files attached to this post.

SIS 5
Member
Posts: 4498
Joined: 22 Nov 2006 17:27
Location: Germany

Re: ► Soft Skinned Vehicles

Post by SIS 5 » 11 Jul 2019 09:10

Hi Jose,

thank You very much for posting these very good and interesting pics of the Büssing-NAG and Ford. To the Ford: Your doubts are legitimate: it cannot be a German Ford. But I don´t know where it is from. B.t.w.: it is the model 817 T.

Best regards

Bert

User avatar
the Rocketman
Member
Posts: 234
Joined: 09 Nov 2004 15:56
Location: Spijkenisse the Netherlands

Re: ► Soft Skinned Vehicles

Post by the Rocketman » 11 Jul 2019 19:37

Reply to message 2071

Thanks Bert

I was not thinking about a Bussing NAG as a Gepackwagen did know it as a Magirus L145 did learn something new thanks
Magirus-L-145-reichspost gepackwagen.jpg
Magirus-L-145-reichspost gepackwagen-01.jpg
Pictures taken from the WWW 2012

Greetings Bert
You do not have the required permissions to view the files attached to this post.

ilfil
Member
Posts: 940
Joined: 03 Feb 2009 18:31
Location: Bulgaria

Re: ► Soft Skinned Vehicles

Post by ilfil » 15 Jul 2019 20:28

SIS 5 wrote:
11 Jul 2019 09:10
Hi Jose,
...
To the Ford: Your doubts are legitimate: it cannot be a German Ford. But I don´t know where it is from. B.t.w.: it is the model 817 T.

Best regards

Bert
You're not right, Bert. The grille is of 1939 model, so it is 917T (or 997T):


It isn't Köln-produced for sure, also it definitely isn't of Benelux origin; the body isn't typical Scandinavian and the long running boards aren't a feature of the Hungarian and Rumanian-assembled Fords, so most probably the only other European candidate is F917T or F997T Matford, an ex-civilian vehicle with custom cab.
Cheers!
"...and on the 8th day He made truck so that man, made on 7th day, had shelter when woman threw him out for the night."

SIS 5
Member
Posts: 4498
Joined: 22 Nov 2006 17:27
Location: Germany

Re: ► Soft Skinned Vehicles

Post by SIS 5 » 17 Jul 2019 10:08

Hi ilfil,

thank You very much for Your reply. You are right, that the grille is of the 1939 model. But the bumper is of the 1938 model. And I have some pics of this type of truck, all with the grille of the 1938 model. Here four examples. Maybe the grille as changed during the use. Or the bumper was changed.

Best regards

Bert
You do not have the required permissions to view the files attached to this post.

Jose85
Member
Posts: 1024
Joined: 12 Sep 2011 10:38

Re: ► Soft Skinned Vehicles

Post by Jose85 » 17 Jul 2019 16:49

Hi,
thanks for the photos Bert!
That means that it is some kind of small series production, either commercial or military, using different models.

The full length running boards are very unusual feature on a "normal" truck with cargo bed. Some French trucks have em, so...Matford??

Danish Ford with a 20mm gun. Only (strange) similarities are the running boards and quite big rear fenders.
http://www.armyvehicles.dk/fordlvg1939.htm

ilfil
Member
Posts: 940
Joined: 03 Feb 2009 18:31
Location: Bulgaria

Re: ► Soft Skinned Vehicles

Post by ilfil » 18 Jul 2019 22:44

Hi Bert,

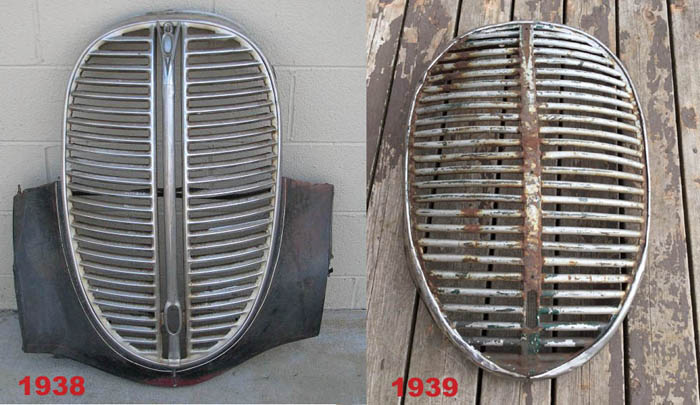

Theoretically you're right. The '38 and '39 grilles are interchangeable, the same for the bumpers. So it is impossible to say for sure what model it is without seeing the manufacturer's data plate. But because of the grille the truck in concern is 1939 model visibly.

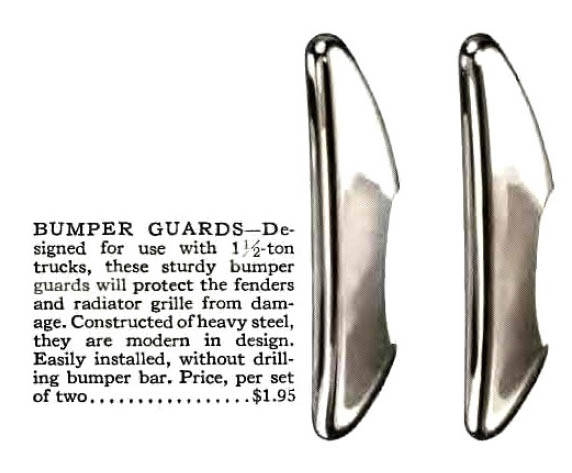

BTW, never use those bumper guards as ID feature. They aren't factory-fitted but offered separately as accessories:

Image Image

Note the price :lol: (from 1940 catalog).
Quite logically such unnecessary "extras" weren't fitted to military trucks. Now take a look at all pictures: on them all trucks are with custom cabs, i.e. they are ex-civilian vehicles captured or pressed into service. Apparently their ex-owners were rich and have had couple of dollars to buy those fancy guards.
Cheers!
"...and on the 8th day He made truck so that man, made on 7th day, had shelter when woman threw him out for the night."

SIS 5
Member
Posts: 4498
Joined: 22 Nov 2006 17:27
Location: Germany

Re: ► Soft Skinned Vehicles

Post by SIS 5 » 18 Jul 2019 23:11

Hi ilfil,

thank You very much for the information about the bumper guards. From now on I will never use those bumper guards as ID feature. Maybe it is interesting for You that many Ford trucks were assembled by Ford´s Amsterdam plant.

Best regards

Bert

User avatar
Maxschnauzer
Financial supporter
Posts: 4339
Joined: 24 Jan 2014 07:36
Location: Philippines

Re: ► Soft Skinned Vehicles

Post by Maxschnauzer » 23 Jul 2019 00:16

One of the special rigs built by Magirus for Hilfzug Bayern,in this case a mobile hospital (see also viewtopic.php?f=132&t=44612&start=1440 and viewtopic.php?t=44612&start=1455):
You do not have the required permissions to view the files attached to this post.
Cheers,
Max

SIS 5
Member
Posts: 4498
Joined: 22 Nov 2006 17:27
Location: Germany

Re: ► Soft Skinned Vehicles

Post by SIS 5 » 23 Jul 2019 07:44

Hi Max,

thanks for posting this interesting pic. This is the ambulance truck of the "Hilfszug Bayern", inside divided in a sterile operating room, a room for stretchers and a waiting room for up to six persons. In the trailer were 18 beds. Here a pic with a view into the operating room (source of the pic and information: "Reichsautozug "Deutschland" und Hilfszug "Bayern" by Horst Hinrichsen).

Best regards

Bert
You do not have the required permissions to view the files attached to this post.

User avatar
Maxschnauzer
Financial supporter
Posts: 4339
Joined: 24 Jan 2014 07:36
Location: Philippines

Re: ► Soft Skinned Vehicles

Post by Maxschnauzer » 23 Jul 2019 23:25

Hi Bert,
Thanks for that pic and accompanying information. Just a minor semantic comment; in English an ambulance is normally considered to be a (usually fast) vehicle used to transport a patient to hospital. I would consider this vehicle/trailer combo a full blown mobile surgical hospital. As you no doubt know these "help trains" were deployed at large party rallies and sent to annexed territories as "good will" (and propaganda) missions prior to the war. A very interesting historical footnote.
Cheers,
Max

SIS 5
Member
Posts: 4498
Joined: 22 Nov 2006 17:27
Location: Germany

Re: ► Soft Skinned Vehicles

Post by SIS 5 » 24 Jul 2019 13:20

Hi Max,

thank You very much for the correction. Of course, You are right, it is not an ambulance, but a mobile surgical hospital. In a publication of the Reich Propaganda Office You can read:
" ... The purpose of the "help train" is catering major crowds fast and trouble-free on the national holidays, mass rallies and all kinds of deployments, caring for ill people and treating immediately injured persons." To give a demonstration of the helping function of the "help train" they put the mobile surgical hospital with the clearly visible "Red Cross" to the top of the column. Here a pic of such a situation. Have a look on the plate beside the license plate: "Achtung Kolonne!" (Attention column!).
You do not have the required permissions to view the files attached to this post.

User avatar
Maxschnauzer
Financial supporter
Posts: 4339
Joined: 24 Jan 2014 07:36
Location: Philippines

Re: ► Soft Skinned Vehicles

Post by Maxschnauzer » 24 Jul 2019 23:30

Hi Bert,
Thanks. I had not seen that picture before.
Maybe you can help me with a question. Do you know if any of these vehicles were moved into the Wehrmacht after hostilities began? I would seem logical that these large field kitchens and medical facilities would be "conscripted" as support vehicles, at least for deployment in non-combatant zones, but I have seen no pictures indicating such.

A couple more pics:
You do not have the required permissions to view the files attached to this post.
Cheers,
Max

SIS 5
Member
Posts: 4498
Joined: 22 Nov 2006 17:27
Location: Germany

Re: ► Soft Skinned Vehicles

Post by SIS 5 » 25 Jul 2019 08:41

Hi Max,

an interesting question. Unfortunately I have no pics of these "help-trains" during the war. And in the book "Reichsautozug "Deutschland" und Hilfszug "Bayern" by Horst Hinrichsen there is only the information, that the Hilfszug "Bayern" was in France, in July 1940 in Paris. And obviously it was in use in the year 1943. That´s all I could find.

Best regards

Bert

User avatar
Maxschnauzer
Financial supporter
Posts: 4339
Joined: 24 Jan 2014 07:36
Location: Philippines

Re: ► Soft Skinned Vehicles

Post by Maxschnauzer » 25 Jul 2019 09:17

Hi Bert,
Thanks for the information and you jogged my memory that I had a pic that confirms they operated in France in 1940:
You do not have the required permissions to view the files attached to this post.
Cheers,
Max
