Help identify damage on museum Pz.IV and Pz.Jg.38T

Discussions on the vehicles used by the Axis forces. Hosted by Christian Ankerstjerne
Post Reply
msktszb
Member
Posts: 11
Joined: 01 Oct 2020, 18:00
Location: Wa US

Help identify damage on museum Pz.IV and Pz.Jg.38T

#1

Post by msktszb » 12 Oct 2020, 21:09

Hello
I have attached some photos of vehicles from the Flying Heritage Combat Arms Museum. The Pz.IV and Pz.Jg.38t both show some marks or damage on the body. I'm curious if anyone knows what would cause these marks? The Pz.IV is in pretty rough shape - it's the Littlefield Pz.IV that was acquired from the Syrian war - but the Pz.Jg.38t was built after the war, using parts from damaged vehicles, so it hasn't seen action since assembly I would presume.
The marks are the small gouges on the Pz.IV around the open access covers, and the all over the side of the 38t. The 38t has similar marks on other surfaces.
Thanks
john
PzIV damage.jpeg
Jagdpanzer 38T damage small.jpg
Jagdpanzer 38T damage close up.jpeg

Yoozername
Member
Posts: 2615
Joined: 25 Apr 2006, 16:58
Location: Colorado

Re: Help identify damage on museum Pz.IV and Pz.Jg.38T

#2

Post by Yoozername » 13 Oct 2020, 05:33

I would guess it was jack-hammered to remove zimmerit. But the Pz.Jg.38t never had zimmerit? It isn't battle damage.


Garry Redmon
Member
Posts: 14
Joined: 01 Mar 2009, 02:18

Re: Help identify damage on museum Pz.IV and Pz.Jg.38T

#3

Post by Garry Redmon » 13 Oct 2020, 14:39

I believe it is done during the manufacture of the rolled plate. It is hammered to relieve stress on the plate so that it doesn't warp. Something like that.

msktszb
Member
Posts: 11
Joined: 01 Oct 2020, 18:00
Location: Wa US

Re: Help identify damage on museum Pz.IV and Pz.Jg.38T

#4

Post by msktszb » 14 Oct 2020, 22:28

thanks for the responses guys. I hadn't considered either of those options.

Yoozername
Member
Posts: 2615
Joined: 25 Apr 2006, 16:58
Location: Colorado

Re: Help identify damage on museum Pz.IV and Pz.Jg.38T

#5

Post by Yoozername » 15 Oct 2020, 19:20

If you look at the Jgp 38t the marks are not all over that plate. Zoom in and you will see they are in vertical bands.

I suspect that since they are both thin plates for each vehicle, it might be some fitment method to bend the plate.

msktszb
Member
Posts: 11
Joined: 01 Oct 2020, 18:00
Location: Wa US

Re: Help identify damage on museum Pz.IV and Pz.Jg.38T

#6

Post by msktszb » 15 Oct 2020, 20:42

yeah, there is a "sinuous" quality to it - definitely some pattern as it moves, whereas the pzIV looks much more like random. There are more marks on the body of the PzIV, but they don't display this pattern either.
Also interesting is that, from the recent thread on the 38t armor quality ( viewtopic.php?f=47&t=252143 ) , the 38t armor was not hardened to the same degree as the pzIV but the marks look very similar. Perhaps that doesn't really matter in this case though - I don't know much about metal or armor.

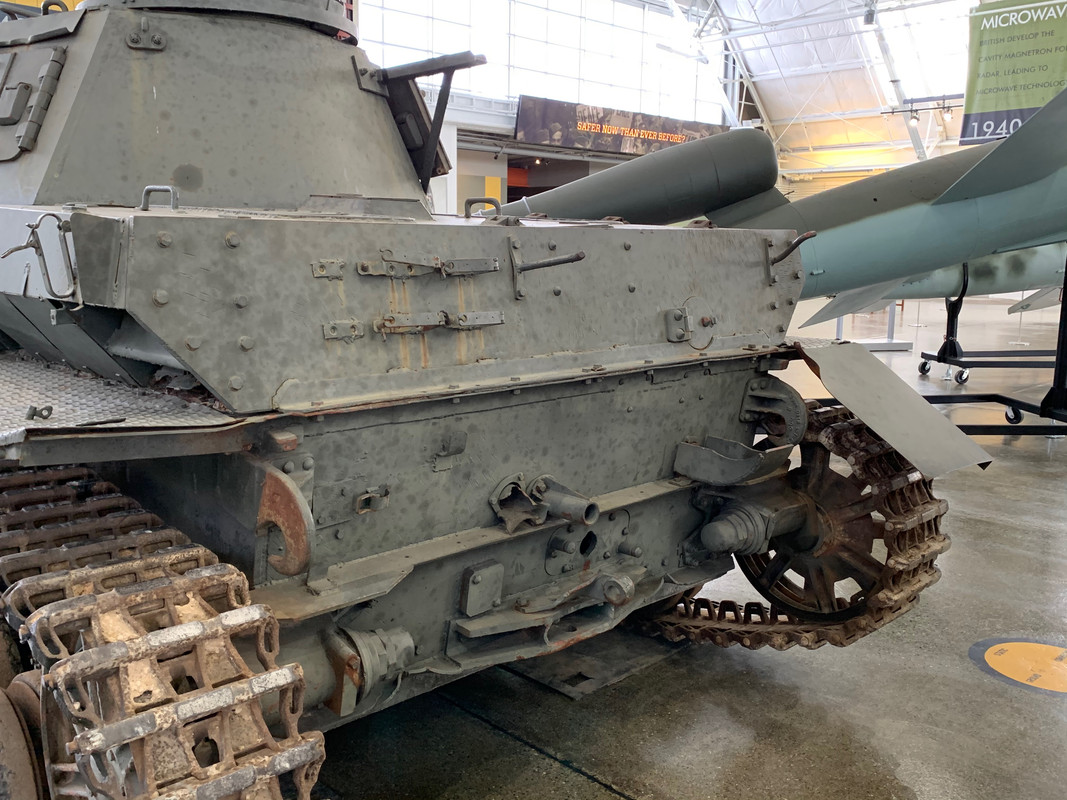

marks on rear of pzIV

User avatar
brano
Member
Posts: 493
Joined: 25 Apr 2004, 16:54
Location: Slovakia

Re: Help identify damage on museum Pz.IV and Pz.Jg.38T

#7

Post by brano » 25 Feb 2021, 17:45

Identical jams have LT vz. 35 floods from Aberdeen (USA). Today in Czech republic. But the jams are also on Pz. Kpfw. IV located in Syria (French machines).

This same jams discussion. https://www.valka.cz/CZK-LT-vz-35-t11691
